Pinholes in Ceramics — Causes, Diagnosis & How Your Feldspar and Quartz Are the Solution

The complete technical guide to eliminating pinholes and crawling in ceramic tiles, glazes, sanitaryware, and porcelain — and why the purity of your Potassium Feldspar, Sodium Feldspar, and Quartz Powder is the single most controllable variable in your kiln.

Ceramic Defect Science · Pinhole Root Causes · Feldspar Quality vs Pinholes · Quartz Purity vs Surface Defects · 50+ Countries · Aalok Overseas India

Every ceramics production manager has experienced it. A kiln opens. The tiles come out. And scattered across the glaze surface — tiny craters, microscopic holes, rough spots. Pinholes. They cost millions of dollars annually in rejected ware, rework, and customer returns across every ceramics-producing country in the world. Yet in the vast majority of cases, the root cause is traceable, preventable, and — most importantly — directly linked to the purity, fineness, and mineralogical consistency of the raw materials in the ceramic body and glaze: Potassium Feldspar, Sodium Feldspar, and Quartz Powder. This guide explains the science, gives you the diagnostic tools, and connects the dots between mineral quality and a defect-free fired surface.

In ceramics, a pinhole is a small, sharp-edged circular depression or hole in the fired glaze or ceramic body surface. They range from barely visible (0.1 mm) to clearly apparent (1–3 mm) and are distinct from related but different defects. Understanding the exact type of defect you are seeing is the first step to diagnosing its cause.

• 0.1–3mm — Typical pinhole diameter range in commercial tile production

• 60–70% — Of pinhole cases traceable to raw material impurity or incorrect fineness

• Fe₂O₃ — Most common mineral contaminant causing pinhole-related surface defects

• ≤0.06% — Target Fe₂O₃ in premium K-Feldspar to prevent iron-blowout pinholes

• 3–18% — Production waste rate from pinholes in poorly sourced material batches

Pinholes vs Crawling vs Crazing vs Pitting vs Blistering vs Dimpling

Defect Name	Visual Appearance	Key Distinction	Primary Cause Category
Pinhole	Small, sharp circular pit — glaze intact around it	Gas escaped AFTER glaze surface sealed	Gas evolution, iron blowout, coarse contamination
Crawling	Glaze retracts, bare clay exposed in patches	Glaze surface tension failure, not gas	High clay content, dusty bisque, over-grinding
Crazing	Network of fine cracks across glaze surface	Thermal expansion mismatch — after cooling	Quartz/feldspar thermal expansion imbalance
Pitting	Wider, irregular depressions — not sharp edges	Larger gas pockets or aggregate inclusions	Coarse impurities, carbonates, heavy minerals
Blistering	Dome-shaped raised bubbles — intact or burst	Gas generated AFTER glaze sealed over it	Organic matter, sulphates, excessive firing speed
Dimpling	Shallow, round depressions — smooth edges	Gas escaped DURING open glaze phase	Correct zone — adjust firing curve

Why this distinction matters: True pinholes (sharp-edged craters) form when gas tries to escape from the body or glaze AFTER the surface has already begun to vitrify and seal. The glaze heals incompletely. This is mechanically very different from crawling or crazing. Diagnosing the correct defect type before investigating raw materials saves weeks of misguided reformulation effort.

Pinholes in ceramics are caused by a combination of material, mineralogical, processing, and firing variables. Below is the definitive classification used by ceramic engineers worldwide.

1. High Iron Content in Feldspar (Fe₂O₃ > 0.12%)

MINERAL CONTAMINATION

Iron compounds in feldspar decompose at high firing temperatures, releasing CO₂ and SO₃ gases. If this happens after the glaze has begun to seal, the escaping gas punches through — leaving a sharp-edged pinhole. This is the single most common mineral-related cause of pinholes in premium white tiles and sanitaryware.

2. Coarse Feldspar Particle Size (Insufficient Grinding)

FINENESS MISMATCH

Feldspar particles coarser than the target mesh specification do not melt completely during the firing cycle. Incompletely melted feldspar granules create localised “sink holes” as the surrounding glaze flows into partially fused zones. A 200 Mesh feldspar in a 325 Mesh glaze recipe is a guaranteed pinhole source.

3. Carbonate Impurities in Quartz or Feldspar

CARBONATE DECOMPOSITION

Calcium carbonate (CaCO₃) and magnesium carbonate (MgCO₃) present as mineral impurities in inadequately beneficiated feldspar or quartz decompose at 840–900°C releasing large volumes of CO₂. If the glaze closes over before this decomposition is complete, pinholes are unavoidable. This is why mineralogical purity — not just XRF oxide analysis — matters.

4. Organic Matter in Raw Materials or Body

ORGANIC BURNOUT

Organic residues (from clay processing, mineral flotation chemicals used in beneficiation, packaging contamination, or poorly washed minerals) burn off during firing, releasing CO₂ and water vapour. Flotation-processed feldspar that is inadequately washed after beneficiation is a known source. Always require LOI (Loss on Ignition) data in your COA.

5. Fast Firing — Insufficient Time in Degassing Zone

KILN FIRING CURVE

Modern fast-fire kilns (firing cycles of 35–60 minutes) leave insufficient time for complete gas evolution before the glaze seals. When raw material quality is marginal — slightly higher iron, slightly coarser grind, trace carbonates — fast firing amplifies every defect. Premium-quality low-iron feldspar provides a much wider fast-fire window.

6. Inconsistent Feldspar K₂O / Na₂O Between Batches

BATCH INCONSISTENCY

Batch-to-batch variation in the K₂O/Na₂O ratio of feldspar changes the melt viscosity and surface tension of the glaze. A glaze recipe optimised for K₂O 11.5% will behave differently — and produce more pinholes — when supplied with feldspar at K₂O 10.2% from a different lot or supplier. This is why NABL-certified COA consistency matters more than a single sample analysis.

7. Sulphates in Body or Glaze Raw Materials

SULPHATE DECOMPOSITION

Sulphate compounds (gypsum, barite, soluble sulphates) present in poorly processed minerals decompose above 1000°C releasing SO₃ gas — well after the glaze has sealed. This is particularly common when feldspar is sourced from deposits that contain accessory sulphate minerals. Request sulphate content (SO₃ < 0.05%) in your COA specification.

8. High TiO₂ in Quartz or Feldspar

TRACE OXIDE CONTAMINATION

Titanium dioxide (TiO₂) is a colouring oxide that can cause localised nucleation and gas entrapment in glazes. Even at 0.05%, TiO₂ can produce visible surface specks and associated micro-pinholes in white glazes. High-purity Quartz (SiO₂ 99.5%+, TiO₂ < 0.02%) and premium K-Feldspar are essential for TiO₂-sensitive applications.

9. Excessive Glaze Thickness

APPLICATION DEFECT

Over-application of glaze (above 8–12g/cm² depending on recipe) prevents complete outgassing through the glaze layer. Gas generated in the body cannot escape before the thick outer glaze layer seals. The solution is both application control AND using a feldspar with lower melt viscosity (higher Na₂O or correct flux balance) to keep the glaze open longer.

10. Incorrect Soaking Temperature / Peak Hold

FIRING PROGRAMME

Insufficient soaking time at peak temperature prevents complete healing of pinhole craters that form as gases escape. High-quality feldspar with consistent melt viscosity heals more readily during the soak — one reason premium feldspar significantly reduces pinholes even with identical firing curves.

11. Heavy Mineral Inclusions (Magnetite, Pyrite, Biotite)

HEAVY MINERAL CONTAMINATION

Inadequately beneficiated feldspar may contain accessory heavy minerals: magnetite (Fe₃O₄), pyrite (FeS₂), or biotite (iron-rich mica). These create double damage — iron contamination (whiteness loss) AND gas-generating decomposition reactions during firing (sulphur dioxide from pyrite, carbon dioxide from siderite). Premium floated/washed feldspar eliminates these.

12. Air Entrapped During Glaze Milling

PROCESSING DEFECT

Aggressive ball-milling of glaze slips can entrap air bubbles. When applied to bisque, these air bubbles fire out as pinholes. Correct mill loading, correct water/solid ratio, and appropriate deflocculant use prevent this. Note: coarser feldspar requires longer milling time — which increases air entrainment risk. Finer-specification feldspar reduces milling time needed.

13. Kiln Atmosphere — Oxidising vs Reducing

KILN ATMOSPHERE

Localised reducing conditions in an otherwise oxidising kiln cause incomplete combustion products (CO) to interact with iron oxides in the body or glaze, generating CO₂. Mixed atmosphere zones — common in poorly maintained kilns — amplify iron-related pinhole formation dramatically. Low-iron feldspar provides significant resilience against atmosphere fluctuations.

14. Moisture in Bisque at Glazing Stage

BISQUE CONDITION

Residual moisture in bisque ware (above 0.5%) at the point of glaze application creates steam during early firing stages. This steam can cause blistering and pinhole-like craters. Proper bisque drying protocol is essential — but well-vitrified body (achieved with correct feldspar flux quality) is more forgiving of slight moisture variations.

15. SiO₂ Imbalance — Quartz Particle Size vs Feldspar

QUARTZ INVERSION STRESS

Free silica (quartz) in the body undergoes the α→β quartz inversion at 573°C (volume expansion of ~2%). If coarse quartz particles are present, this inversion creates micro-fractures in the body through which gas escapes later. High-purity, correctly-graded Quartz Powder (matching the body recipe specification) eliminates this variable entirely.

16. Mixed Feldspar Sources in Same Batch

MATERIAL INCONSISTENCY

Mixing feldspar from two different suppliers — or two different lots from the same supplier without COA verification — creates unpredictable melt behaviour. Different K₂O/Na₂O ratios, different particle size distributions, and different trace mineral profiles create localised areas of different viscosity in the glaze — which appear as scattered, inconsistent pinholes with no clear spatial pattern.

Use the symptom pattern you observe in your kiln output to trace back to the most probable cause and the most direct fix. Raw material changes are highlighted where they are the primary intervention.

Symptom	Probable Cause	Recommended Fix
Pinholes only in white / light-coloured tiles; darker tiles fine	Iron contamination in feldspar or glaze raw material	Switch to K-Feldspar Fe₂O₃ < 0.06% (Aalok Overseas Premium Grade)
Pinholes scattered randomly — no spatial pattern in kiln	Batch-to-batch feldspar inconsistency; mixed sources	Standardise to single-source NABL-COA feldspar; reject lots outside spec
Pinholes worse after switching feldspar supplier	Higher Fe₂O₃, coarser grind, or lower K₂O in new material	Return to COA-verified source; run side-by-side XRF comparison
Pinholes concentrated at tile edges / corners	Glaze thickness variation; edge over-spray	Adjust application; use higher-Na₂O feldspar for better flow at edges
Blistering + pinholes together on same tile	Organic matter or sulphates in raw materials; gas after glaze seal	Request LOI < 0.5% and SO₃ < 0.05% in feldspar COA; slow peak firing rate
Pinholes worse in fast-fire; fine in slow cycle	Marginal raw material quality — exposed by speed; carbonate decomposition incomplete	Upgrade to premium feldspar (lower Fe₂O₃, finer grind) to widen fast-fire window
Micro-pinholes with dark centre / brown speck	Iron-rich mineral inclusion (magnetite, biotite) in feldspar	Request floated / magnetically-separated feldspar; check Fe₂O₃ and TiO₂ in COA
Rough surface texture — not craters but not smooth	Coarse quartz or feldspar particles — incomplete melt	Upgrade to 325 Mesh feldspar and matched Quartz 325 Mesh from single source
Pinholes appear only in new kiln / new firing programme	Faster firing cycle exposing marginal material quality	Materials were borderline acceptable before — now exposed. Improve raw material quality
Pinholes in sanitaryware body — not surface glaze	Coarse quartz inversion stress; incomplete feldspar vitrification	Use Quartz 325 Mesh + K-Feldspar 325 Mesh; verify quartz inversion temperature tolerance

The three primary ceramic raw materials that Aalok Overseas supplies each play a distinct and critical role in pinhole prevention. The quality specifications are not marketing numbers — they are the exact parameters that ceramic engineers use to formulate pinhole-free glazes and bodies.

Potassium Feldspar (K-Feldspar · KAlSi₃O₈) — The Whiteness & Flux Standard

Why it matters for pinholes: K-Feldspar is typically 40–60% of a ceramic glaze recipe and 15–30% of a tile body. Its iron content, particle size, and K₂O level are the three most critical variables controlling pinhole formation.

Fe₂O₃ < 0.06%: At this level, iron-related gas evolution during firing is negligible — even in fast-fire conditions. Fe₂O₃ above 0.12% is a measurable pinhole risk in white and light-coloured tiles.

K₂O 11.5%+ consistent: High, consistent potassium oxide ensures predictable melt viscosity batch after batch. Variable K₂O (the signature of poorly processed or mixed-source feldspar) creates variable glaze behaviour — and scattered, unpredictable pinholes.

325 Mesh for glazes: Particles finer than 45 microns melt completely within the fast-fire window. Coarser particles leave unmolten cores that create surface depressions.

• Fe₂O₃ < 0.06% · K₂O 11.5%+ · Whiteness 90–93% · 325 Mesh (45μ) · NABL COA

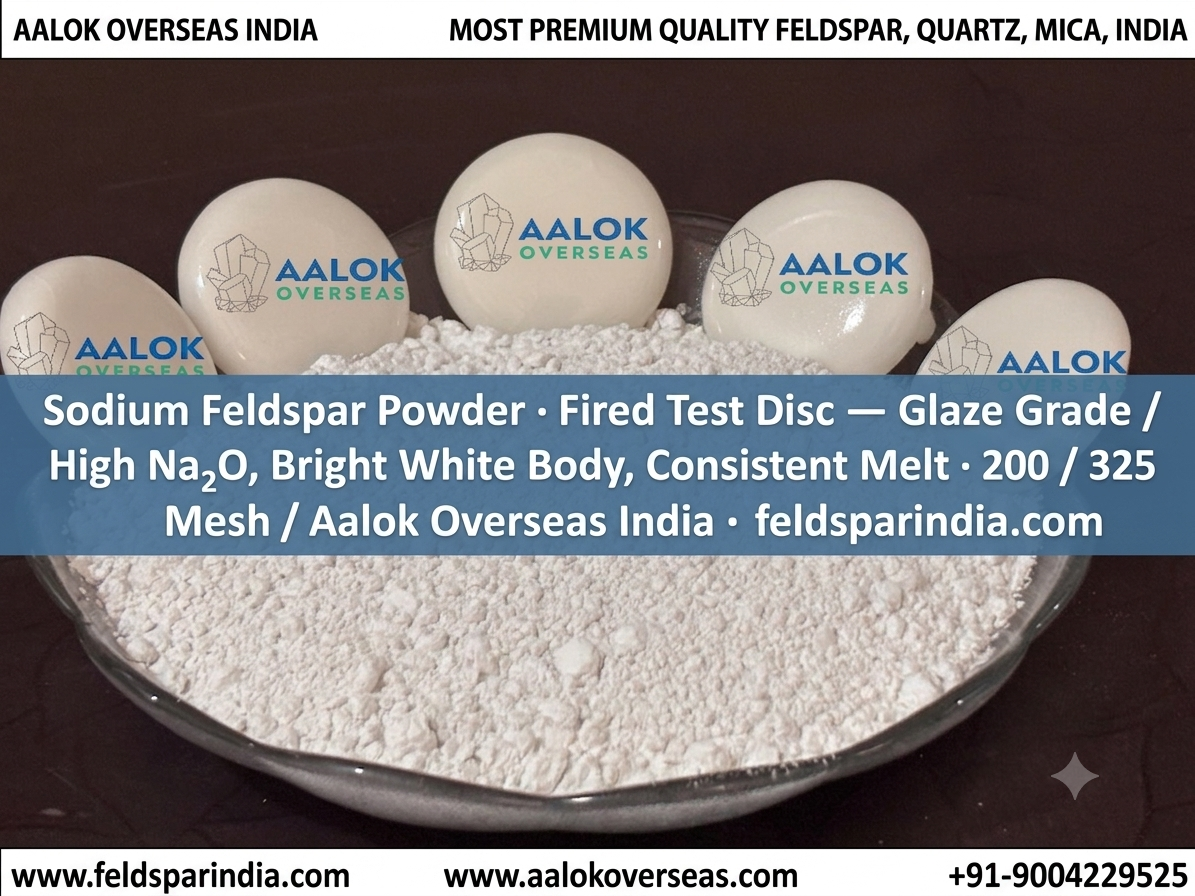

Sodium Feldspar (Na-Feldspar · NaAlSi₃O₈) — The Fast-Fire & Flow Specialist

Why it matters for pinholes: Sodium Feldspar has a lower melting point than Potassium Feldspar, which means it enters the liquid phase earlier in the firing cycle — keeping the glaze surface open (fluid) longer. This is the key mechanism that allows trapped gases to escape BEFORE the glaze seals.

Na₂O 9.5–10%+: Higher Na₂O means lower melt viscosity — a more fluid glaze at lower temperatures. This is critical in fast-fire kilns where the degassing window is narrow. A high-flow Na-Feldspar (Na₂O 10%+) effectively extends the time window during which pinholes can heal.

Blending strategy: Many ceramic engineers blend K-Feldspar and Na-Feldspar to dial in exact melt characteristics. K-Feldspar provides whiteness and hardness; Na-Feldspar provides flowability and early flux activity — together creating a pinhole-resistant glaze with excellent surface quality.

• Na₂O 9.5–10%+ · High Flow Melt · Fe₂O₃ < 0.15% · 200/325 Mesh · NABL COA

Quartz Powder (SiO₂ 99.5%+) — The Structural Framework

Why it matters for pinholes: Quartz in the ceramic body and glaze is the structural network former. At the right particle size and purity, it controls thermal expansion, body strength, and the physical integrity of the fired surface. At the wrong specification, it is a direct cause of both pinholes and crazing.

SiO₂ 99.5%+: Impurities in quartz — particularly iron, aluminium, and titanium — disrupt the silica network and create localised zones of different thermal expansion. These become the initiation sites for pinhole cracking during cooling.

Quartz inversion at 573°C: The α→β crystal transformation causes a 2% volume change. Coarse quartz particles (above 100 microns) create micro-stress fractures at this temperature — these can propagate as pinholes or rough spots in the final fired surface. Quartz 325 Mesh completely eliminates this risk in standard ceramic bodies.

• SiO₂ 99.5%+ · Fe₂O₃ < 0.02% · Whiteness 90–95% · 200/325 Mesh · TiO₂ < 0.02%

The Premium Mineral Argument — In Numbers

A ceramics factory producing 50,000 m²/day at a rejection rate of 3% due to pinholes loses approximately 1,500 m²/day of product. At even a conservative selling price of USD 4/m², that is USD 6,000/day in losses — USD 1.8 million per year. Upgrading from standard to premium feldspar (Fe₂O₃ < 0.06%, NABL-certified, consistent K₂O) typically reduces pinhole-related rejection by 60–80%. The price differential between standard and premium feldspar is a fraction of this saving.

Raw Material Quality Controls — Implement Before Every Batch

1. Verify Fe₂O₃ on every feldspar lot COA. Accept K-Feldspar only at Fe₂O₃ < 0.08% for standard grades, < 0.06% for premium white tiles and sanitaryware. Reject any lot without NABL-accredited XRF analysis.

2. Check K₂O consistency across consecutive lots. Acceptable variance is ±0.3% K₂O between shipments from the same supplier. Greater variation indicates ore zone changes or mixed-source supply — both pinhole risks.

3. Verify mesh specification by sieve analysis — not just supplier label. Run a 45-micron wet sieve test on every 325 Mesh feldspar lot. Residue above 2% on 325 Mesh indicates grind inconsistency.

4. Request LOI (Loss on Ignition) in COA. LOI < 0.5% for feldspar indicates minimal organic matter and carbonate impurities. Higher LOI is a direct gas-evolution risk.

5. Request SO₃ content in feldspar COA. Sulphate content should be < 0.05%. Feldspar from deposits with accessory sulphate minerals can have SO₃ up to 0.3% — a significant blister and pinhole risk above 1000°C.

6. Use Quartz at 325 Mesh minimum for tile body. This eliminates quartz inversion stress fractures as a pinhole source. For sanitaryware and porcelain, use 500 Mesh quartz.

7. Verify Quartz SiO₂ purity at 99.5%+ minimum. Quartz with SiO₂ below 98.5% contains aluminium silicate and iron impurities that create differential thermal expansion zones — pinhole initiation sites.

8. Never mix feldspar from two different sources in the same batch. If switching suppliers, run a full trial batch before blending into production. Even small K₂O differences between sources create glaze instability.

9. Store feldspar in covered, dry conditions. Moisture absorption increases effective LOI and can cause steam-related blistering. Jumbo bags should be stored on pallets, covered, in enclosed warehouses.

10. Run fired tile tests on every new lot before full production. Fire a 100-piece trial on the actual kiln with the actual glaze line before releasing a new feldspar lot to production. Compare fired whiteness, glaze flow, and pinhole count against reference standard.

11. Optimise firing curve degassing window. Ensure kiln temperature between 900–1050°C (the primary degassing zone for iron, sulphate, and carbonate decomposition) provides adequate time for gas evolution before glaze sealing at 1100°C+.

12. Request and retain all certificates for every production lot. Commercial Invoice, NABL COA, MSDS, Certificate of Origin — maintain a complete paper trail. When pinholes appear, traceable lot data is the fastest route to root cause identification.

“In ceramics, pinholes are not a firing problem. They are a raw material problem that manifests in the kiln. Fix the mineral — fix the defect.”

Each major ceramics-producing country has distinct standards, production methods, and quality requirements. The significance of raw material quality — and therefore feldspar and quartz purity — varies by market and product type.

South Korea — ISO 10545 · KS L 1001 · Zero-defect standard

Korean ceramics manufacturers (LX Hausys, KCC) operate some of the most demanding defect standards globally. Pinhole counts above 0.5 per m² trigger lot rejection. This drives consistent demand for ultra-premium K-Feldspar (Fe₂O₃ < 0.06%) from Rajasthan. India–Korea CEPA p
